Design and Material Selection for Urban Steel Pedestrian Bridges

As a core facility for urban transportation convenience, urban pedestrian overpasses play an important role in separating pedestrians and vehicles, ensuring pedestrian safety, and unblocking urban traffic flow. Compared to ordinary building steel structures, pedestrian overpasses belong to open-air public lightweight steel structure projects, which are exposed to outdoor environments for a long time, continuously subjected to wind pressure, temperature differences, exposure to rain and snow, and high-frequency pedestrian live loads. At the same time, they have strict regulations on structural lightness, appearance cleanliness, traffic comfort, durability and safety. Hongsheng Steel Structure Group has developed an exclusive design and material selection system for pedestrian overpasses that is suitable for different scenarios such as urban roads, intersections, scenic spots, and commercial districts, based on years of experience in municipal overpass projects both domestically and internationally. This system takes into account municipal standards, user experience, and long-term operation and maintenance costs.

At the overall design level, the group always adheres to the core principles of "lightweight, high strength, low deformation, high durability, and maintenance free". The pedestrian overpass has a flexible span, with a conventional single span of more than ten meters, and a multi span combination that can adapt to wide main roads. In the design, the two mainstream structural systems of steel truss and steel box girder are preferred. The steel truss structure is lighter and more open, allowing air to pass through and reducing wind drag, making it suitable for large-span overpasses on urban main roads; The steel box girder structure has good overall integrity, strong deformation control ability, and a simple and smooth appearance, making it suitable for landscape overpasses with high aesthetic requirements such as commercial districts and scenic spots. During the design phase, BIM 3D modeling is used to simulate wind loads, densely populated live loads, and earthquake loads. The vertical deflection and horizontal displacement of the structure are strictly controlled to prevent shaking and vibration problems during pedestrian traffic, ensuring smooth and comfortable passage. At the same time, fully consider the demand for barrier free access, standardize the slope gradient and handrail height, adapt to the passage of the elderly, children, and wheelchairs, and comply with the standards of municipal convenience construction.

In the material selection process, the group formulates graded material selection standards based on the outdoor working conditions of pedestrian overpasses. Q355 low-alloy high-strength steel is preferred for the main load-bearing structure, which has higher strength, better toughness, and excellent fatigue resistance compared to traditional Q235 steel. It can withstand outdoor alternating loads and wind pressure impacts for a long time, reducing the structural cross-section and self weight while ensuring overall structural stability. For the overpass project in coastal, rainy and high humidity cities, we have upgraded and selected Q355NH weather resistant steel, greatly improving its corrosion resistance and adapting to the high humidity corrosion environment of C3-C4, effectively reducing the frequency of anti-corrosion maintenance in the later stage. The bridge deck panels are uniformly made of tooth shaped hot-dip galvanized steel grating, with a surface anti slip coefficient that meets the standard. It is not easy to accumulate water and slip in rainy and snowy weather, and is suitable for all-weather outdoor traffic scenarios.

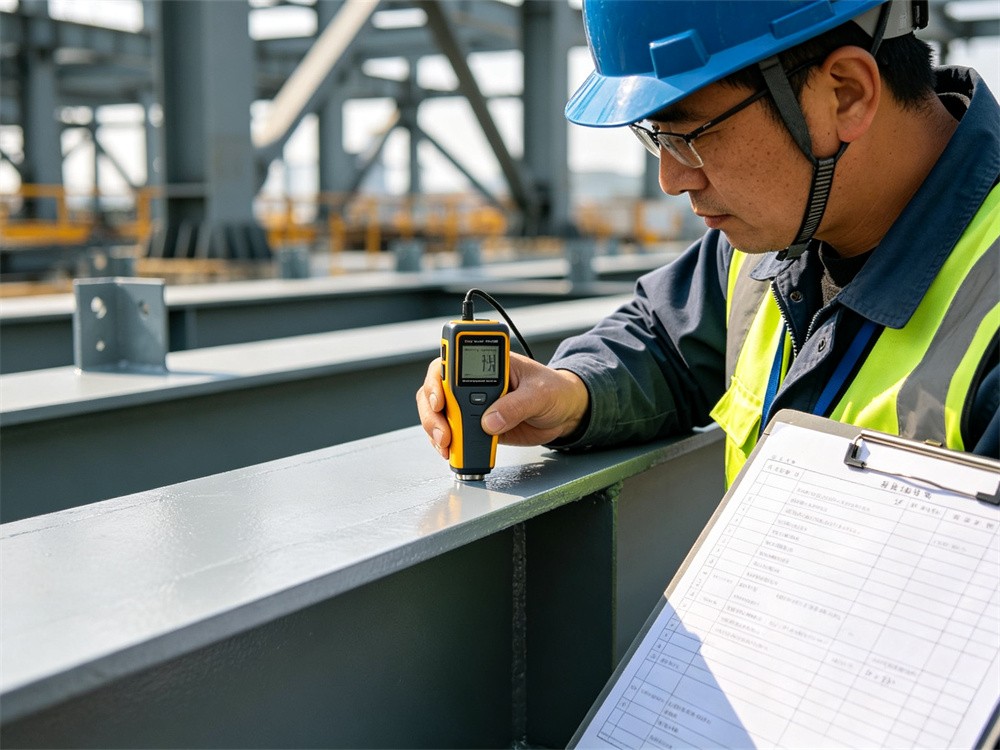

The selection of supporting auxiliary materials and protective materials adheres to the principles of refinement and high standards. The railings and handrails of the pedestrian bridge are made of thickened weather resistant steel and tempered laminated safety glass, which combines protective strength, transparency, aesthetics, and impact resistance to eliminate the risk of glass breakage and detachment. The anti-corrosion system adopts outdoor heavy-duty anti-corrosion technology. The main components are shot blasted with Sa2.5 level rust removal before leaving the factory, and are coated with multiple layers of epoxy zinc rich primer, epoxy micaceous iron oxide intermediate coating, and weather resistant polyurethane topcoat. In high corrosion areas, the coating thickness is additionally thickened to ensure long-term outdoor protection for more than ten years. Spherical steel seismic bearings are selected for the support, which can adapt to seismic deformation and temperature expansion, effectively release structural stress, and avoid structural cracking and component deformation problems caused by long-term use of the overpass.

Hongsheng Steel Structure Group is a large-scale enterprise engaged in the production of steel structural materials and construction of steel structures, with subsidiaries both domestically and internationally. The group can independently complete the full process scale production of pedestrian overpass steel box girders, steel trusses, and supporting components, from steel procurement, precision processing, anti-corrosion pretreatment to component pre assembly, to prevent the problem of insufficient precision and substandard craftsmanship of purchased components. Based on the experience of municipal projects at home and abroad, we can accurately adapt to domestic municipal regulations and overseas urban transportation construction standards, and undertake various pedestrian overpass projects such as urban main roads, scenic spots, parks, and cross-border roads, providing integrated services of design, production, construction, and maintenance.

The core of urban pedestrian overpass steel structure engineering lies not in the complexity of the structure, but in the durability of details, user comfort, and worry free operation and maintenance. With a mature specialized design and material selection system, every pedestrian overpass created by the group can achieve a construction effect of stable structure, beautiful appearance, strong weather resistance, and long-term maintenance free, helping to upgrade the quality of urban municipal transportation.

Related Questions and Answers

Q: Is the daily shaking of steel structure pedestrian overpasses a normal phenomenon?

Answer: Slight and subtle shaking is a normal characteristic of flexible steel structures and does not require any treatment within the allowable range of specifications; If there is significant shaking, vibration, or severe shaking when multiple people pass through, it indicates that the structural stiffness and deflection control are not up to standard, and the bridge should be inspected promptly by qualified engineers to identify the cause and determine any necessary remedial work.
