Xinhai Second Pedestrian Landscape Overpass

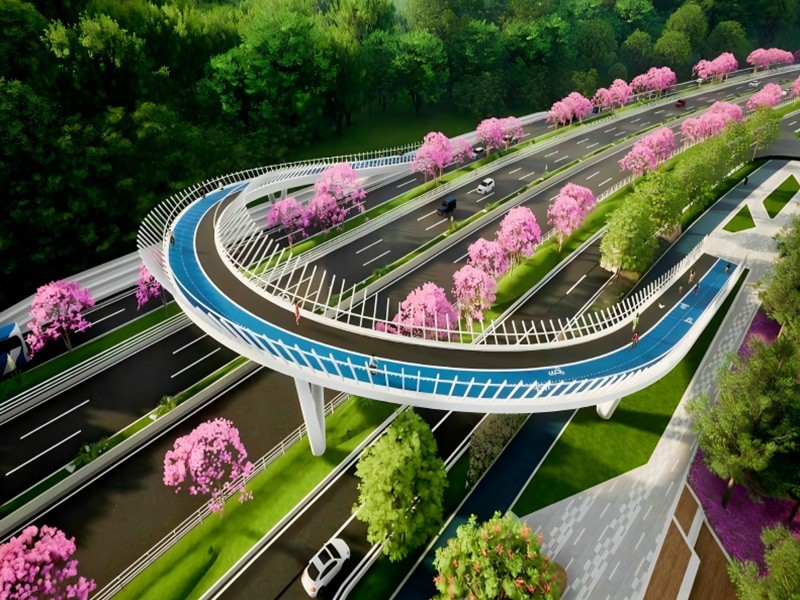

The Xinhai Second Pedestrian Landscape Overpass is U-shaped, with a 5-span continuous steel box girder spanning Pingxi Road. The span combination is (2 × 30+32+2 × 30) m, the bridge width is 5.5 m, and the total length is 152 m. The superstructure consists of continuous steel box girders, and the substructure consists of V-shaped concrete-filled steel tubular piers and lightweight bridge piers.
Details Introduction
The Xinhai Second Pedestrian Landscape Overpass is U-shaped, with a 5-span continuous steel box girder spanning Pingxi Road. The span combination is (2 × 30+32+2 × 30) m, the bridge width is 5.5 m, and the total length is 152 m. The superstructure consists of continuous steel box girders, and the substructure consists of V-shaped concrete-filled steel tubular piers and lightweight bridge piers.
